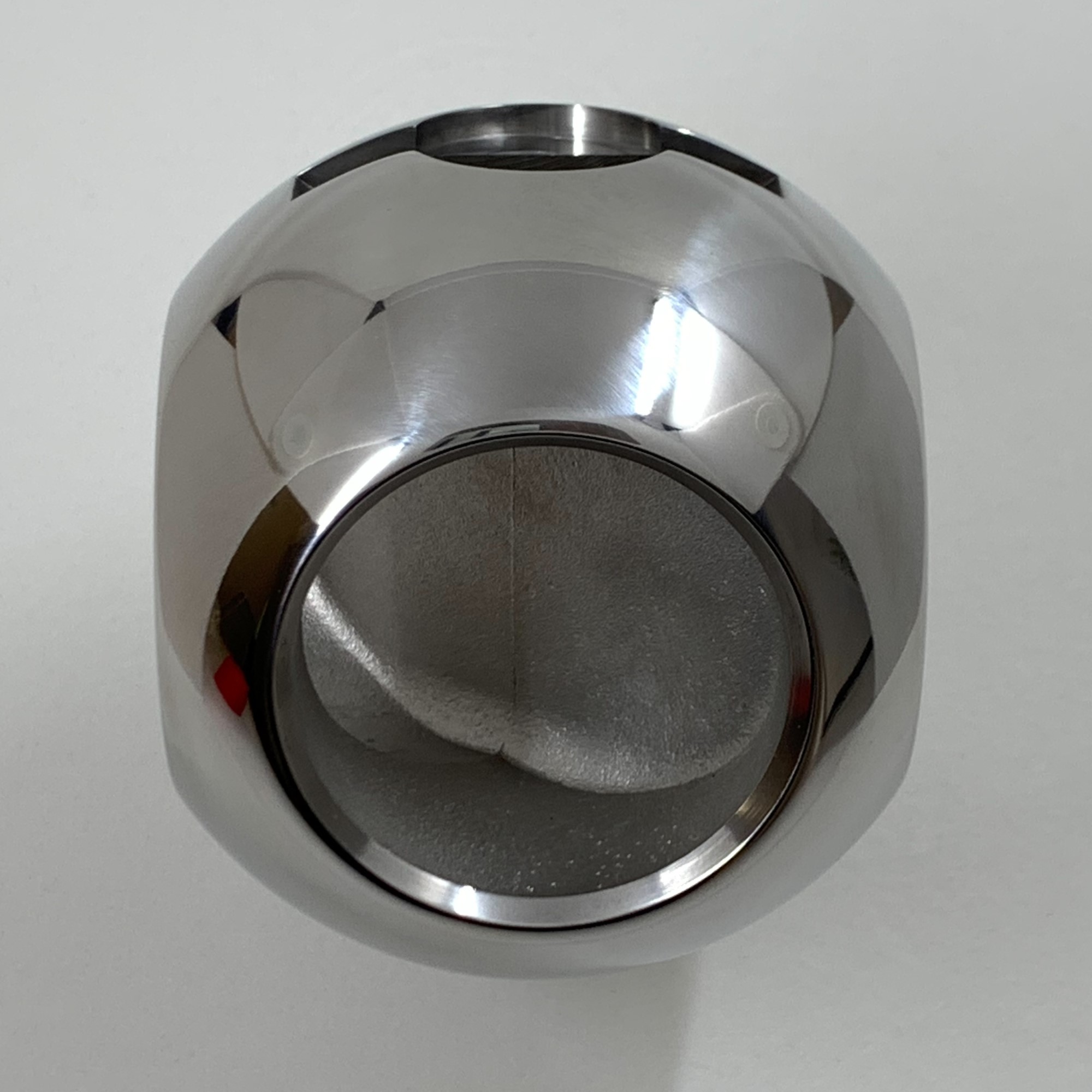

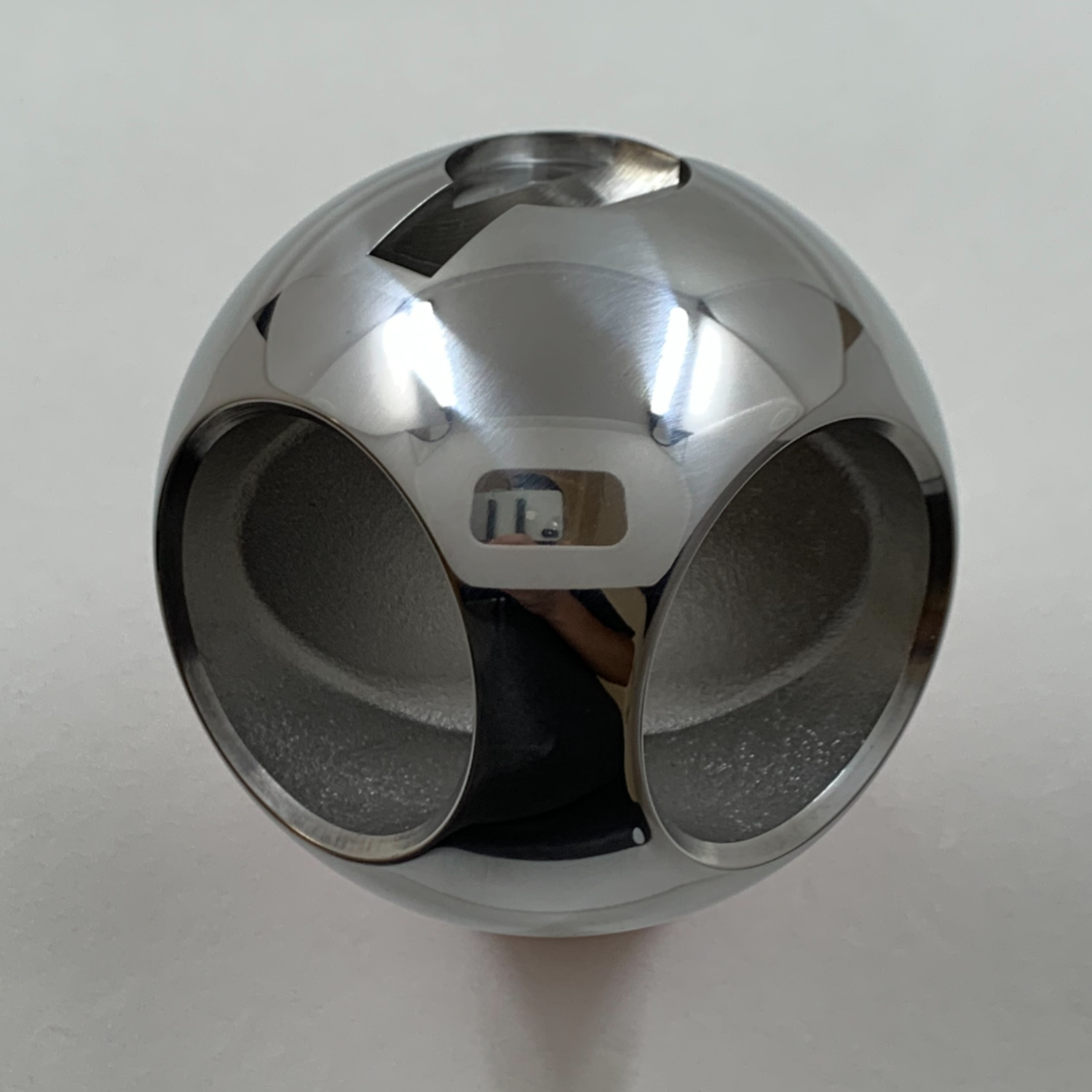

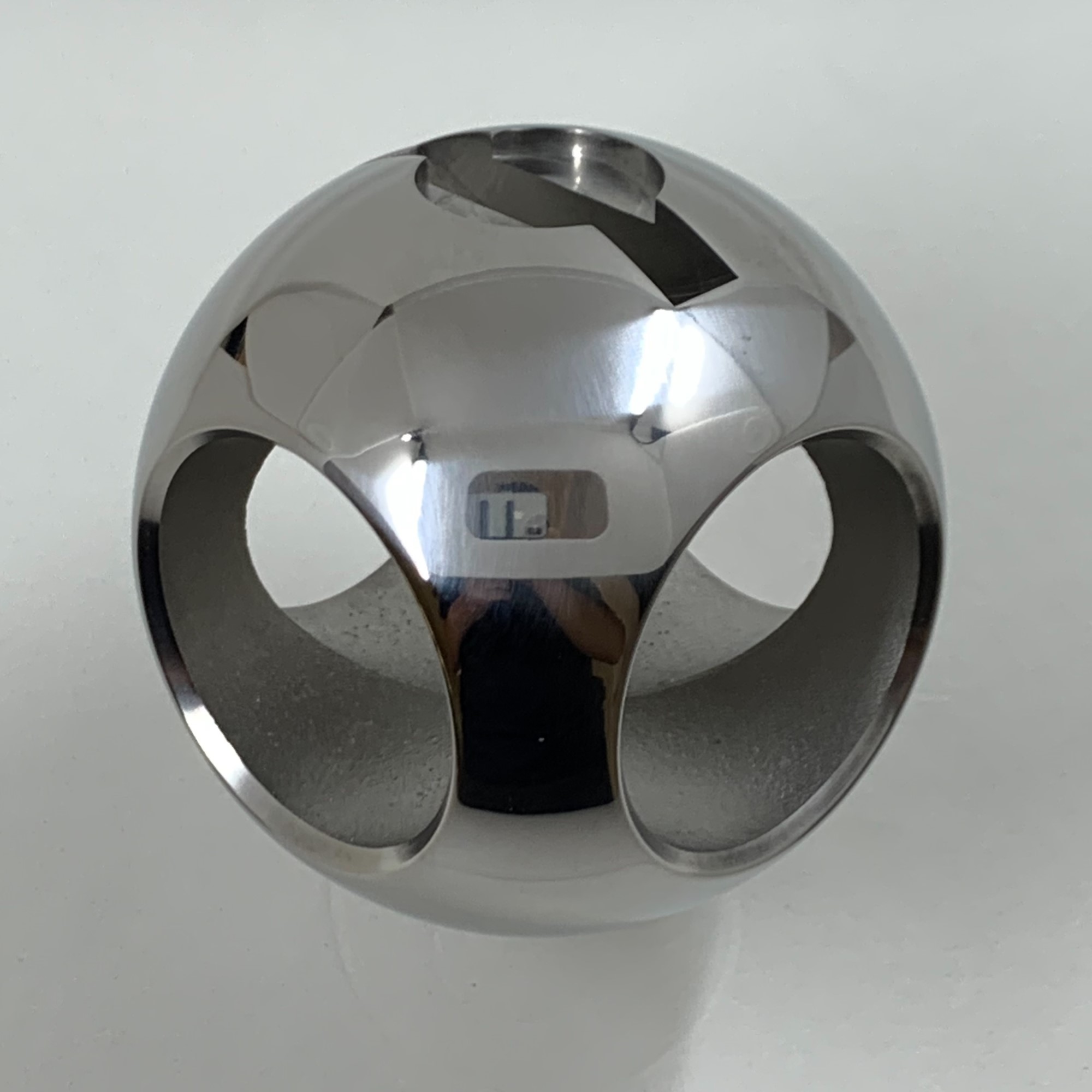

X-Port Valve Ball usually used on 4-way ball valve, each side has two L shaped port in the ball with no interconnect, it is also called as Double L Valve Ball.
This type of ball valve has four ports equally spaced around the valve chamber. 4-way ball valve (X-Port Valve Ball) has two flow positions, and usually a central position where all ports are closed.
Product Feature
Bore Size : 1/2″ to 6″, DN10 to DN150
Roundness : 0.01 – 0.03mm
Surface Roughness : ≤0.4μm
ID Roughness : 0.4μm – 1.6μm
OD Tolerance : ±0.02mm to ±0.05mm depends on the size
ID Tolerance : ±0.02mm to ±0.05mm depends on the size
Material Type : Forging, Casting, Centrifugal Casting, Round Bar, Wax Lost Casting
Material : 304, 304L, 316, 316L, CF3, CF3M, CF8, CF8M, 1.4408, 1.4509, 1215, 2205, F51, CA15, CD3MN, CE3MN, 17-4PH, SCS13A, SCS14A, 1.4529, 316Ti, Alloy 20, Hastelloy C, etc.
Surface treatment : Mirror Polishing, HVOF Spray, Chromium Plating , Tungsten Carbide, Chromium Carbide, Nickel Plating (ENP), Nickel based valve ball, etc.
