Normally the stem in a ball valve is separated from ball and not fastened to the ball.

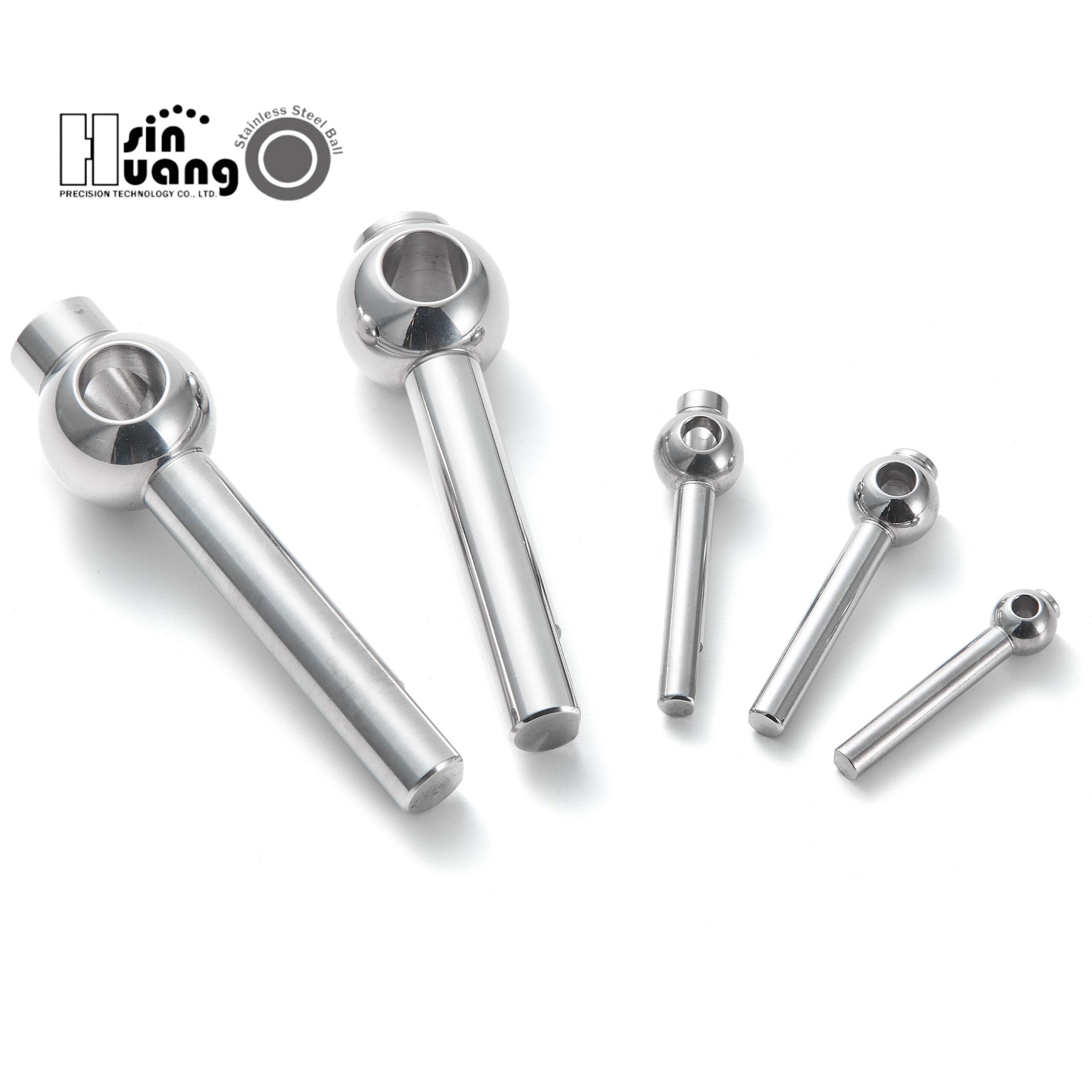

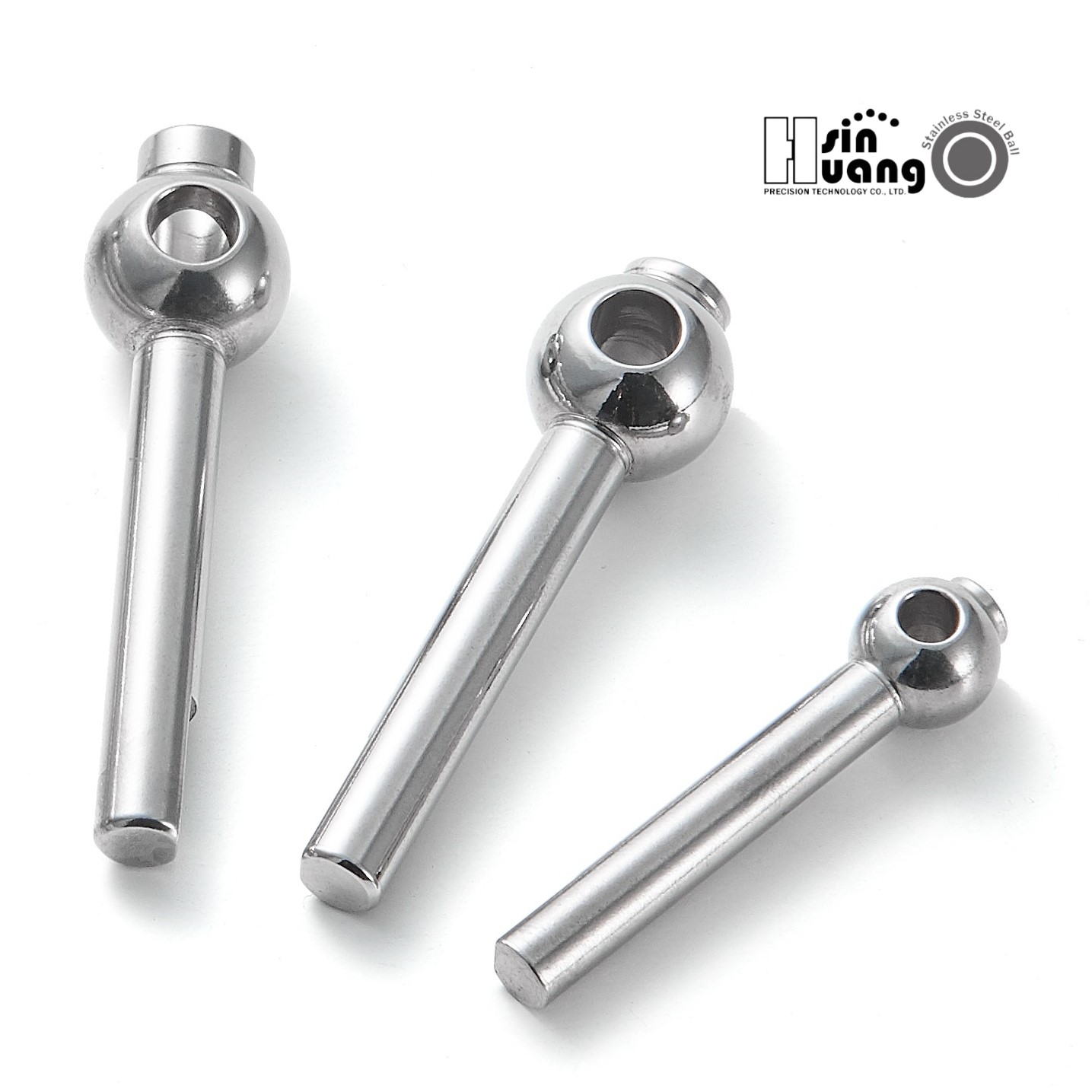

Stem Ball is entirety casted in one piece and then made through various machining procedures.
With stem on valve ball is normally used for high pressure trunnion ball valves or cryogenic ball valves.
Sizes and shapes are all according to customers’ drawing.
Product Feature
Bore Size : 1/4″ to 1/2″, DN6 to DN10
Roundness : 0.01 – 0.03mm
Surface Roughness : ≤0.4μm
ID Roughness : 0.4μm – 1.6μm
OD Tolerance : ±0.02mm
ID Tolerance : ±0.02mm
Material Type : Forging, Round Bar
Material : 304, 304L, 316, 316L, CF3, CF3M, CF8, CF8M, 1.4408, 1.4509, 1215, 2205, F51, CA15, CD3MN, CE3MN, 17-4PH, SCS13A, SCS14A, 1.4529, 316Ti, Alloy 20, Hastelloy C, etc.
Surface treatment : Mirror Polishing
