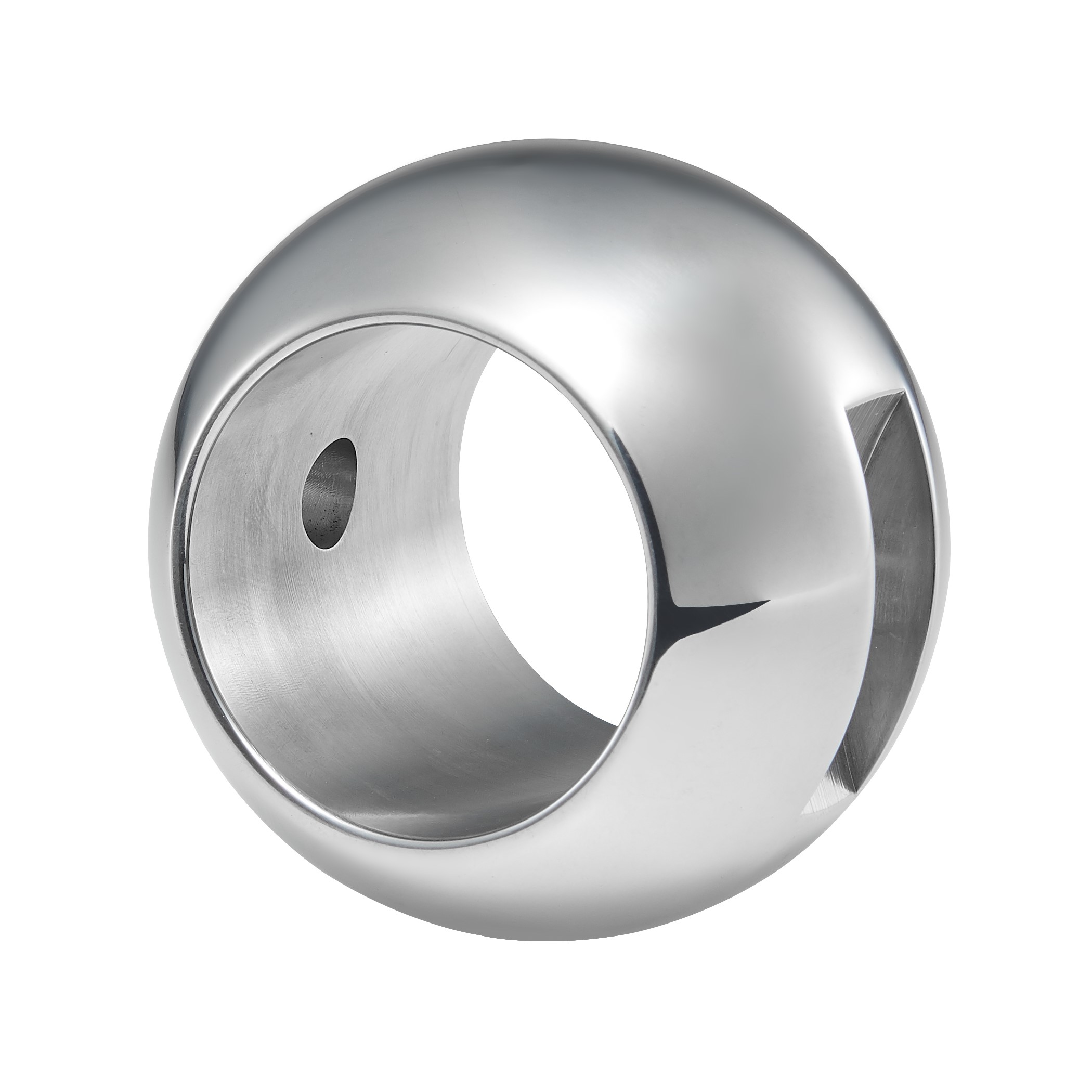

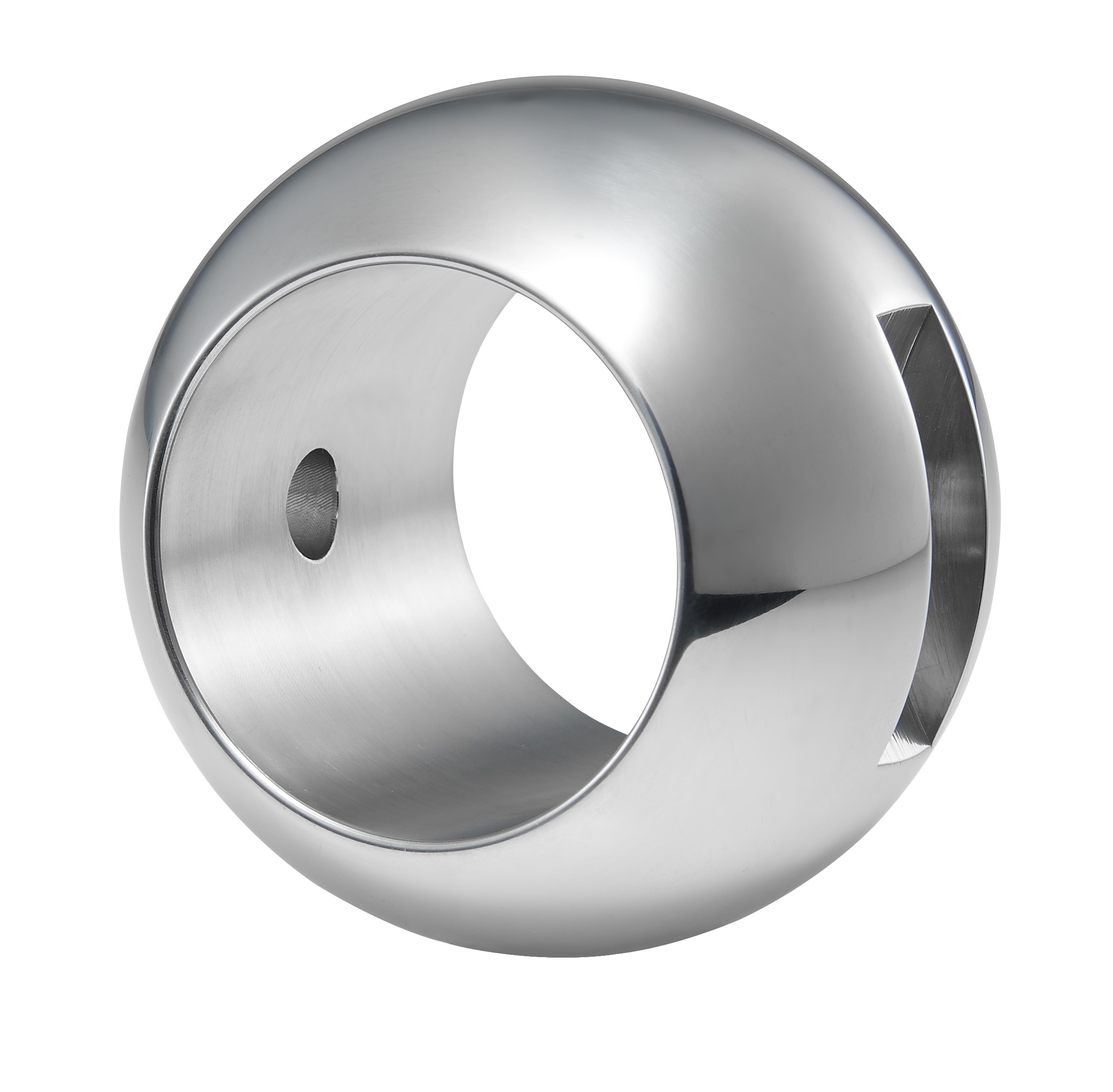

The Side Bore Valve Balls are similar to the normal floating valve balls but with an extra drilled hole on the side of valve balls.
The purpose for the side bore is to release the internal pressure inside the valve ball while the valve position is closed. Which can guide the remaining fluid inside the valve ball going through the side bore to the downstream under closing position.
Product Feature
Bore Size : 1/2″ to 16″, DN10 to DN400
Roundness : 0.01 – 0.03mm
Surface Roughness : ≤0.4μm
ID Roughness : 0.4μm – 1.6μm
OD Tolerance : ±0.02mm to ±0.05mm depends on the size
ID Tolerance : ±0.02mm to ±0.05mm depends on the size
Material Type : Forging, Casting, Centrifugal Casting, Round Bar, Wax Lost Casting
Material : 304, 304L, 316, 316L, CF3, CF3M, CF8, CF8M, 1.4408, 1.4509, 1215, 2205, F51, CA15, CD3MN, CE3MN, 17-4PH, SCS13A, SCS14A, 1.4529, 316Ti, Alloy 20, Hastelloy C, etc.
Surface treatment : Mirror Polishing, HVOF Spray, Chromium Plating , Tungsten Carbide, Chromium Carbide, Nickel Plating (ENP), Nickel based valve ball, etc.
