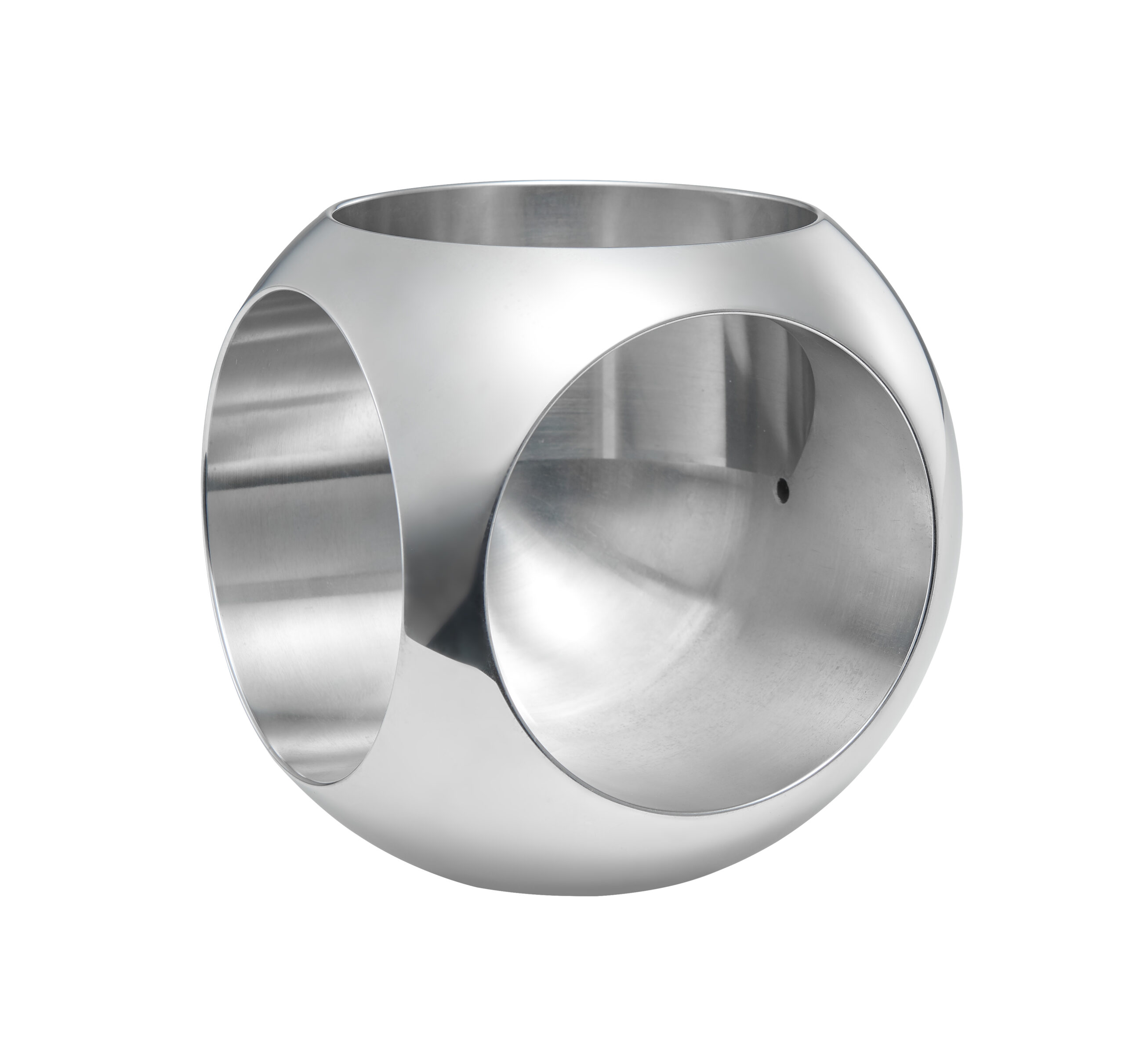

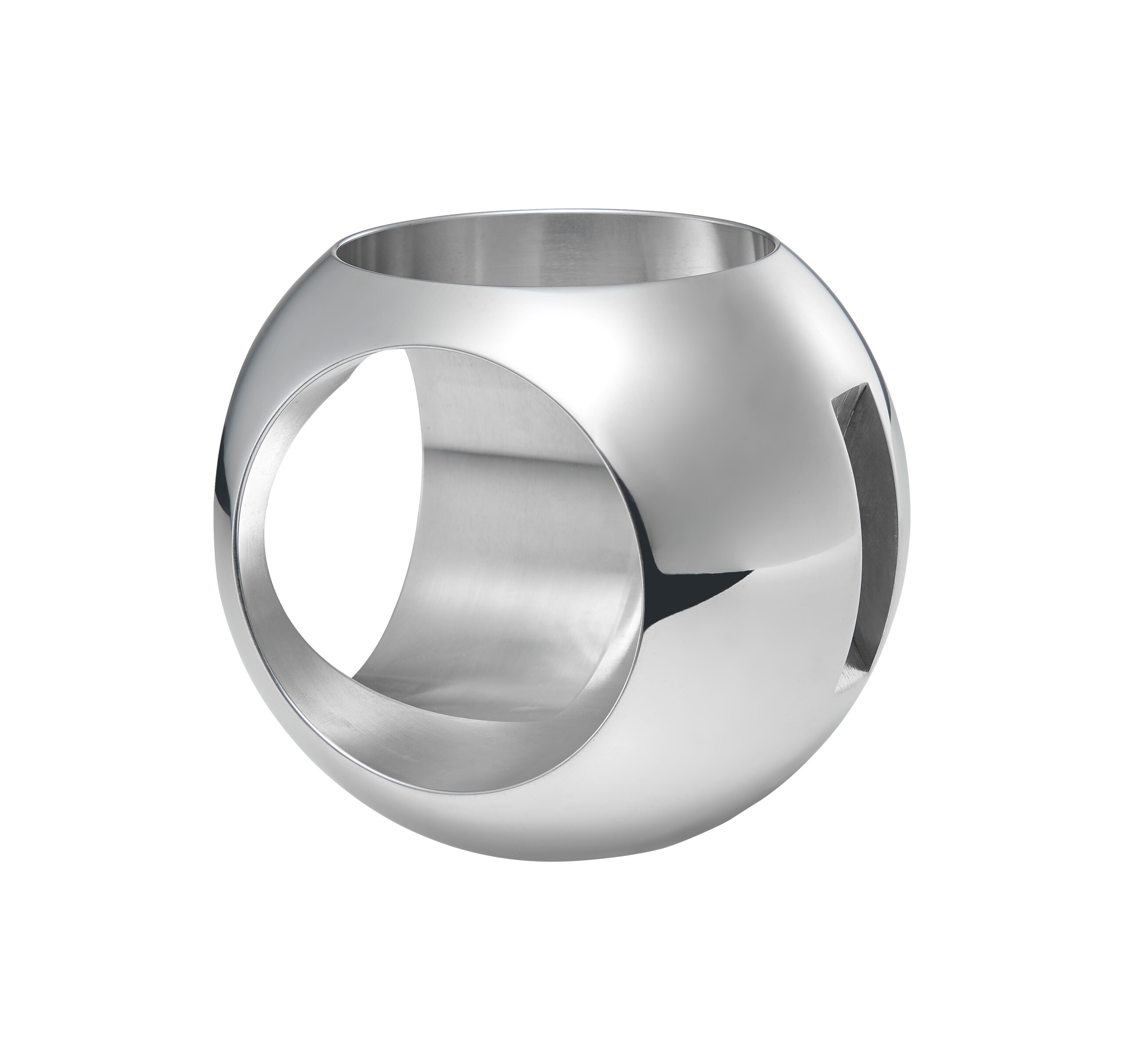

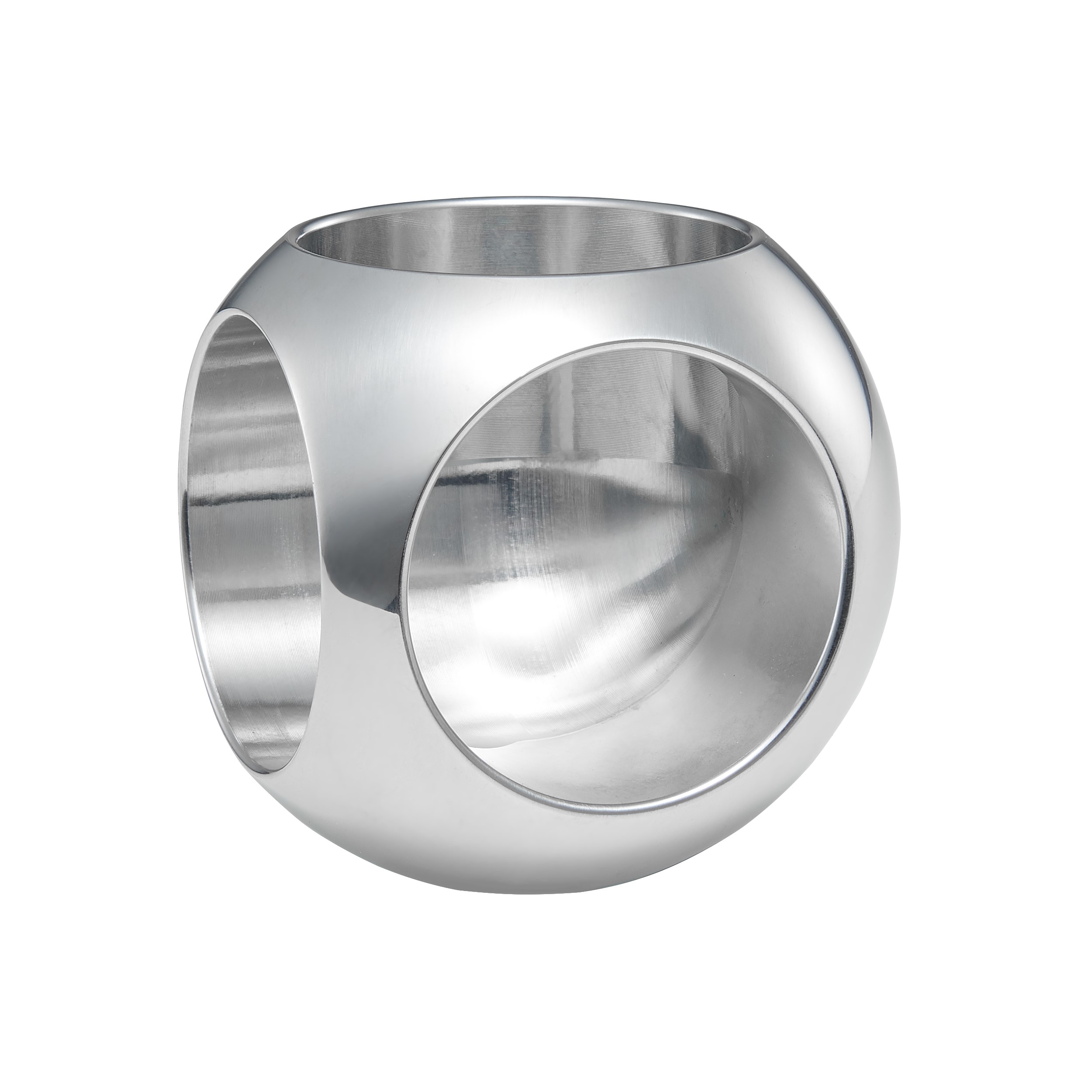

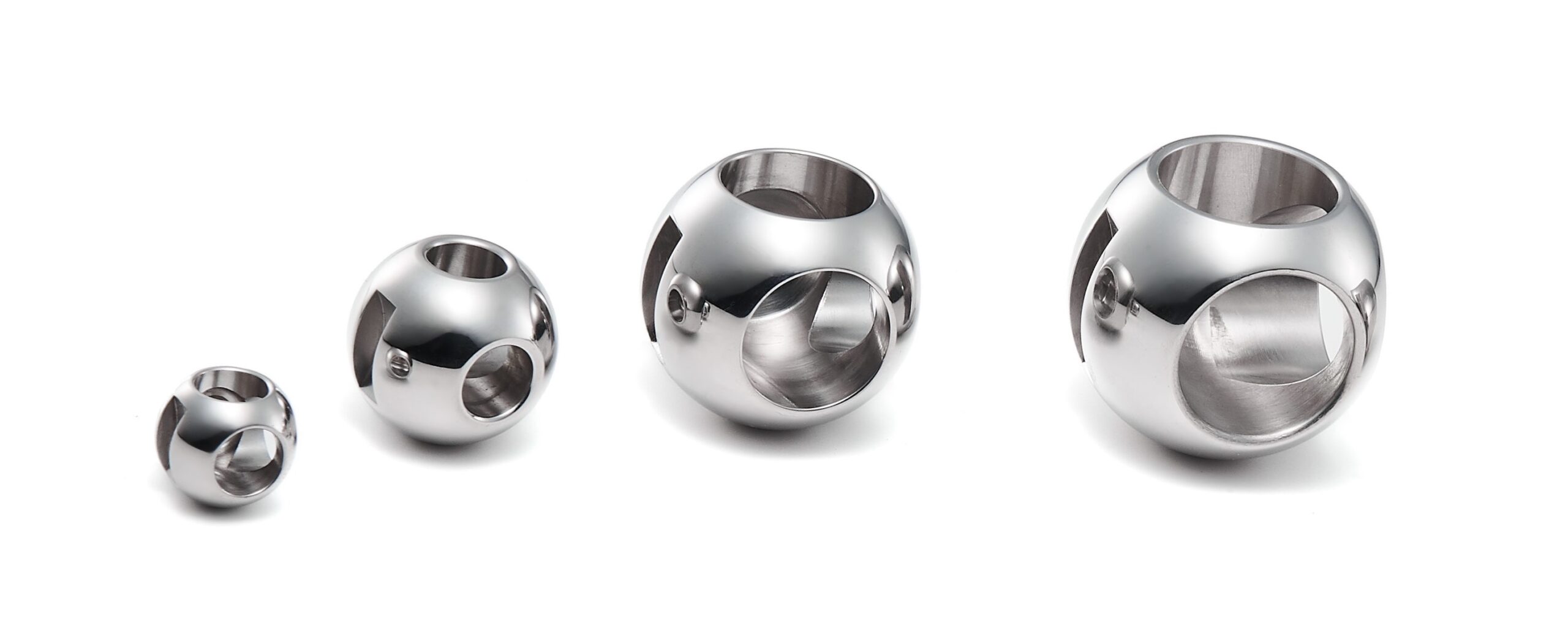

F-port valve balls are very similar to T-port valve balls and L-port valve balls. As known as, LL-port valve balls.
F-port valve balls are used to take two inlet flows and combine them to flow out through one common outlet port but always has one inlet/ outlet at the bottom of valve ball.
This can be used for splitting, dividing, and diverting flow. They can act like L-port valve balls and divert flow from one inlet port to the other two outlets..
With the F-shape drilled bore, the fluid can be directed from X axis to Y axis which is very different from L and T port valve ball.
Product Feature
Bore Size : 1/2″ to 6″, DN10 to DN150
Roundness : 0.01 – 0.03mm
Surface Roughness : ≤0.4μm
ID Roughness : 0.4μm – 1.6μm
OD Tolerance : ±0.02mm to ±0.05mm depends on the size
ID Tolerance : ±0.02mm to ±0.05mm depends on the size
Material Type : Forging, Casting, Centrifugal Casting, Round Bar, Wax Lost Casting
Material : 304, 304L, 316, 316L, CF3, CF3M, CF8, CF8M, 1.4408, 1.4509, 1215, 2205, F51, CA15, CD3MN, CE3MN, 17-4PH, SCS13A, SCS14A, 1.4529, 316Ti, Alloy 20, Hastelloy C, etc.
Surface treatment : Mirror Polishing, HVOF Spray, Chromium Plating , Tungsten Carbide, Chromium Carbide, Nickel Plating (ENP), Nickel based valve ball, etc.
